RH-3FRH3515-D
RH-3FRH3515-D
Vendor: Mitsubishi Electric Series:

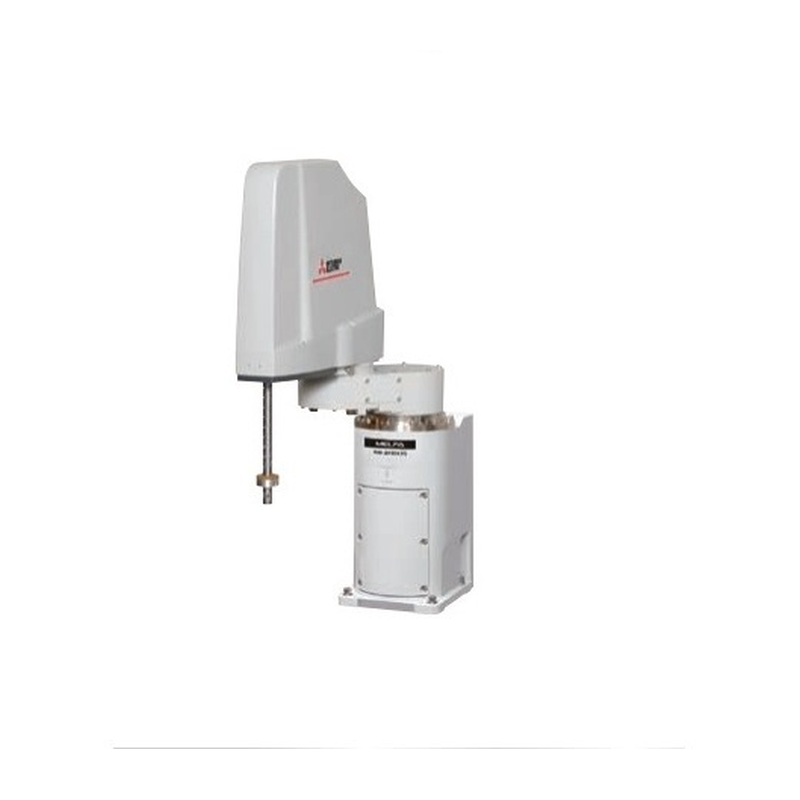

Industrial Robot RH-3FRH-D 4-axis; +/- 0,01mm; 3kg; 350/150mm; incl. CR800
Regular price
$32,864.83 AUD
Regular price
Sale price
$32,864.83 AUD
Low stock: 1 left
Quantity
Couldn't load pickup availability
Share
Technical Information
| Series | RH-FR SERIES |
|---|---|
| Type | SCARA |
| Payload (kg) | 3 |
| Max. Reach Radius (mm) | 350 |
| Z Axis Stroke (mm) | 150 |
| Environment specification | STANDARD |
| Controller Type | CR800-D |
| Cycle Time (s) | 0,41 |
| Speed (mm/s) | 6800 |
| Repeatability (mm) | 0,01 |
| Installation Method | FLOOR |
| Protection Class | IP20 |
| Power Supply (VAC) | 1PHASE 200-230V |
| Power Consumption (VA) | 500 |
| Operating Range J1 (deg) | 340 |
| Operating Range J2 (deg) | 290 |
| Operating Range J4 (deg) | 720 |
Product Dimensions & Weight
| Width (mm) | 174 |
|---|---|
| Height (mm) | 773 |
| Depth (mm) | 565 |
| Weight (kg) | 29 |
