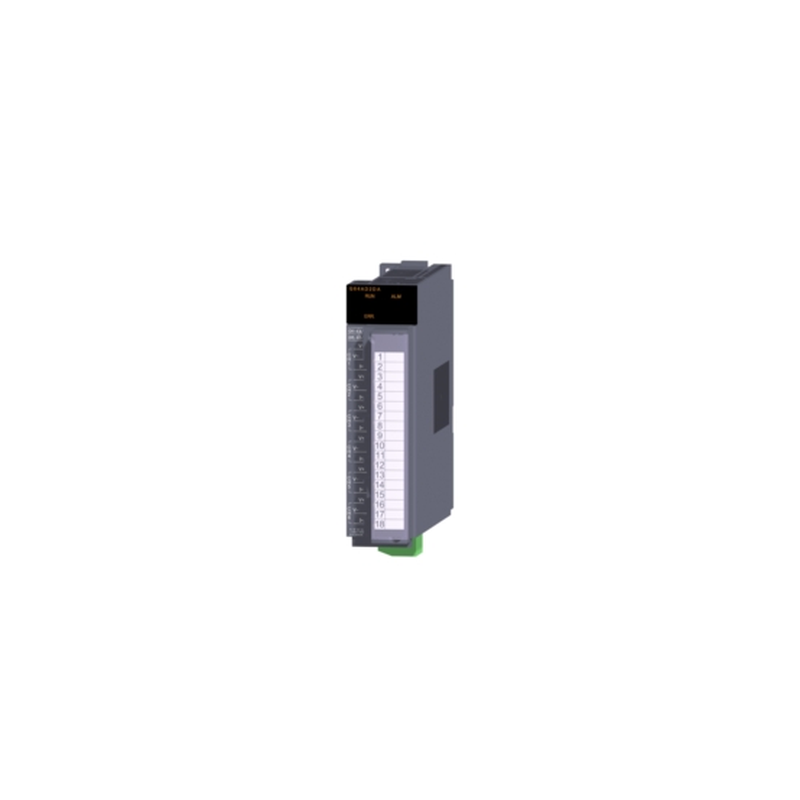

Q64AD2DA
Q64AD2DA
Vendor: Mitsubishi Electric Series: Q Series
PLC Q Series analog module; 4in-,2outputs; current and voltage 0/4..20mA
Regular price
$1,886.00 AUD
Regular price
Sale price
$1,886.00 AUD
Low stock: 2 left
Quantity
Couldn't load pickup availability
Share
Technical Information
| Series | MELSEC-Q SERIES |
|---|---|
| Type | ANALOG INPUT/OUTPUT COMBINED |
| Power Supply (V) | 24 |
| Current Type | DC |
| Occupied I/O Points on PLC | 16 |
| Integrated Analogue Inputs | 4 |
| Integrated Analogue Outputs | 2 |
| Input Voltage Range (V) | -10-10; 0-10; 0-5; 1-5 |
| Input Current Range (mA) | 0-20; 4-20 |
| Output Voltage Range (V) | -10-10; 0-5; 1-5 |
| Output Current Range (mA) | 0-20; 4-20 |
| Wiring | SCREW |
| Int. Current Consumption (A) | 0,17 |
Product Dimensions & Weight
| Width (mm) | 27,4 |
|---|---|
| Height (mm) | 98 |
| Depth (mm) | 112 |
| Weight (kg) | 0,23 |
