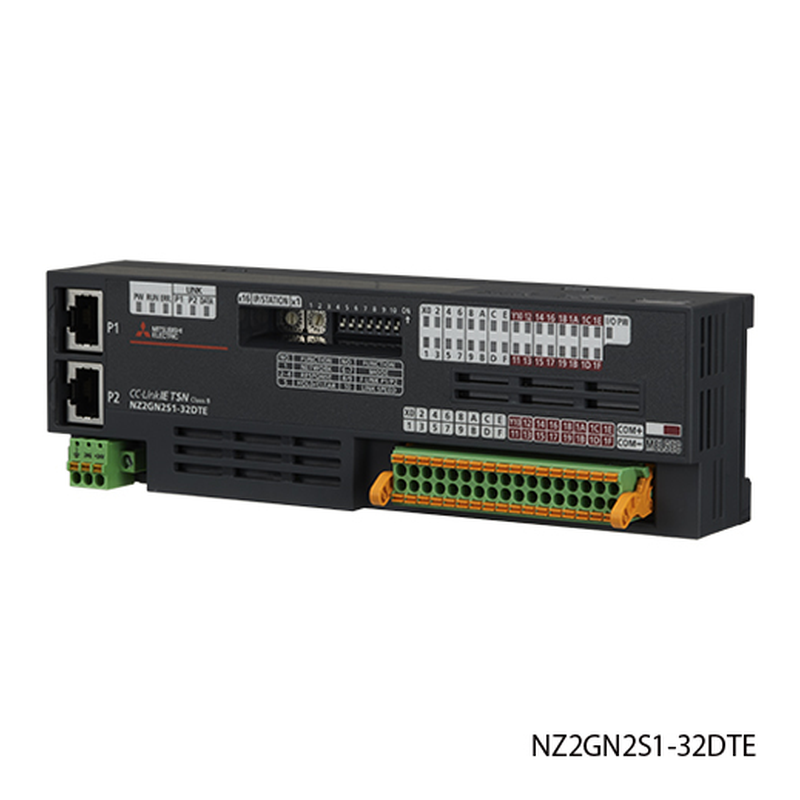

NZ2GN2S1-32DTE
NZ2GN2S1-32DTE
Vendor: Mitsubishi Electric Series: CC Link
PLC Remote I/O Module; CC-Link IE TSN; 16 inp. 16 tr. outputs source; spring cl.
Regular price
$850.00 AUD
Regular price
Sale price
$850.00 AUD
Out of stock
Quantity
Share
Technical Information
| Series | CC-LINK IE TSN |
|---|---|
| Type | REMOTE I/O COMBINED MODULE |
| Power Supply (V) | 24 |
| Current Type | DC |
| Occupied Stations | 1 |
| Integrated Digital Inputs | 16 |
| Integrated Digital Outputs | 16 |
| Rated Input Voltage (VDC) | 24 |
| Rated Load Voltage (VDC) | 24 |
| Output Type | TRANSISTOR |
| Output Logic | SOURCE |
| Wiring | SPRING CLAMP |
| Int. Current Consumption (A) | 0,11 |
Product Dimensions & Weight
| Width (mm) | 179 |
|---|---|
| Height (mm) | 54,5 |
| Depth (mm) | 45,5 |
| Weight (kg) | 0,2 |
