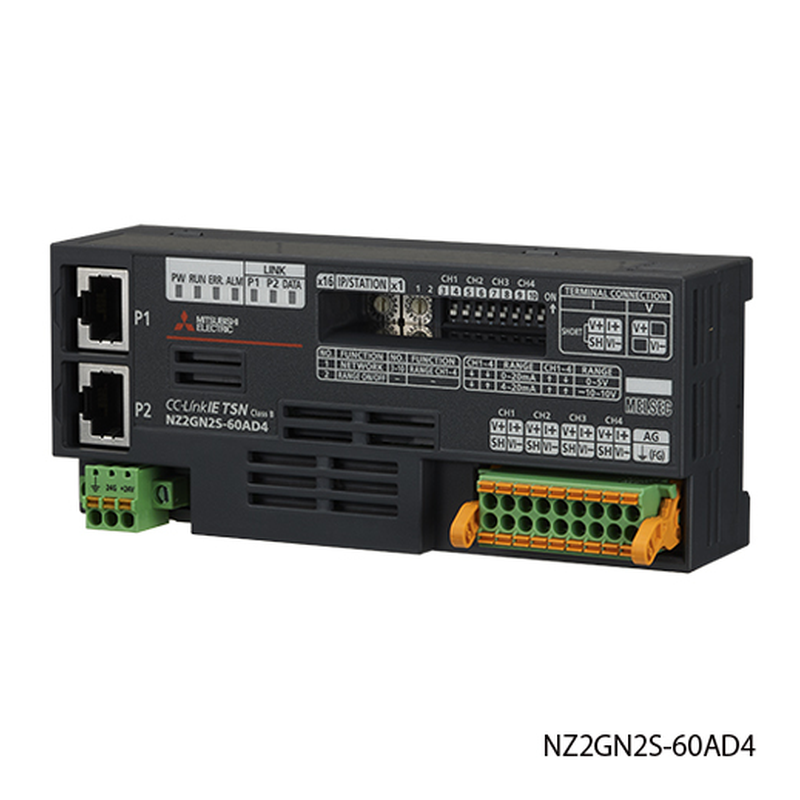

NZ2GN2S-60AD4
NZ2GN2S-60AD4
Vendor: Mitsubishi Electric Series: CC Link
PLC Remote Analog Input Module; CC-Link IE TSN; 4 ch voltage/current; spring cl.
Regular price
$1,080.00 AUD
Regular price
Sale price
$1,080.00 AUD
Low stock: 1 left
Quantity
Couldn't load pickup availability
Share
Technical Information
| Series | CC-LINK IE TSN |
|---|---|
| Type | REMOTE ANALOG INPUT |
| Power Supply (V) | 24 |
| Current Type | DC |
| Occupied Stations | 1 |
| Integrated Analogue Inputs | 4 |
| Input Voltage Range (V) | -10-10; 0-10; 0-5; 1-5 |
| Input Current Range (mA) | 0-20; 4-20 |
| Wiring | SPRING CLAMP |
| Int. Current Consumption (A) | 0,15 |
Product Dimensions & Weight
| Width (mm) | 130 |
|---|---|
| Height (mm) | 54,5 |
| Depth (mm) | 45,5 |
| Weight (kg) | 0,13 |
