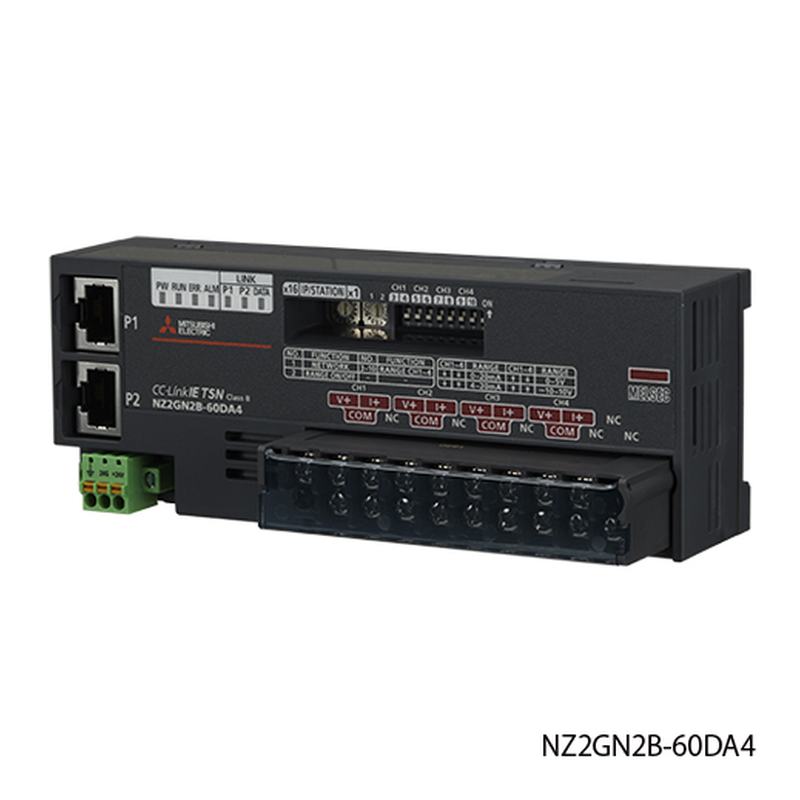

NZ2GN2B-60DA4
NZ2GN2B-60DA4
Vendor: Mitsubishi Electric Series: CC Link
PLC Remote Analog Output Module; CC-Link IE TSN; 4 ch voltage/current; screw te.
Regular price
$1,080.00 AUD
Regular price
Sale price
$1,080.00 AUD
Out of stock
Quantity
Share
Technical Information
| Series | CC-LINK IE TSN |
|---|---|
| Type | REMOTE ANALOG OUTPUT |
| Power Supply (V) | 24 |
| Current Type | DC |
| Occupied Stations | 1 |
| Integrated Analogue Outputs | 4 |
| Output Voltage Range (V) | -10-10; 0-10; 0-5; 1-5 |
| Output Current Range (mA) | 0-20; 4-20 |
| Wiring | SCREW |
| Int. Current Consumption (A) | 0,25 |
Product Dimensions & Weight
| Width (mm) | 147 |
|---|---|
| Height (mm) | 54,5 |
| Depth (mm) | 57 |
| Weight (kg) | 0,2 |
