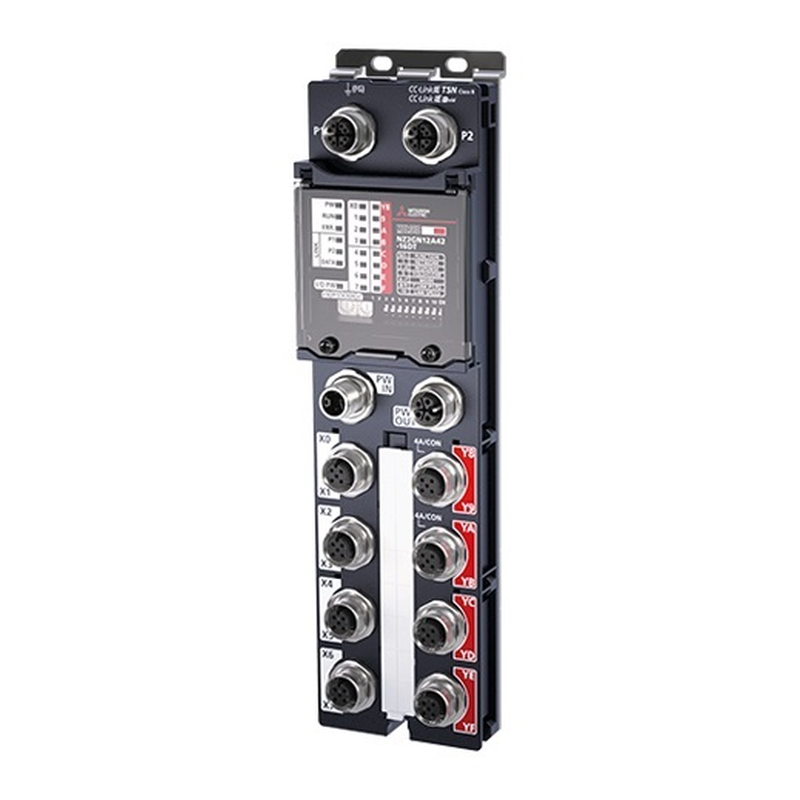

NZ2GN12A42-16DT
NZ2GN12A42-16DT
Vendor: Mitsubishi Electric Series: CC Link
PLC Remote I/O Module; CC-Link IE TSN; 8 inputs+8 tran. outputs sink; IP67; M12
Regular price
$1,436.00 AUD
Regular price
Sale price
$1,436.00 AUD
Out of stock
Quantity
Share
Technical Information
| Series | CC-LINK IE TSN |
|---|---|
| Type | REMOTE I/O COMBINED MODULE |
| Power Supply (V) | 24 |
| Current Type | DC |
| Occupied Stations | 1 |
| Integrated Digital Inputs | 8 |
| Integrated Digital Outputs | 8 |
| Rated Input Voltage (VDC) | 24 |
| Rated Load Voltage (VDC) | 12-24 |
| Output Type | TRANSISTOR |
| Output Logic | SINK |
| Wiring | CONNECTOR |
| Int. Current Consumption (A) | 0,16 |
Product Dimensions & Weight
| Width (mm) | 63 |
|---|---|
| Height (mm) | 238 |
| Depth (mm) | 37,5 |
| Weight (kg) | 0,42 |
