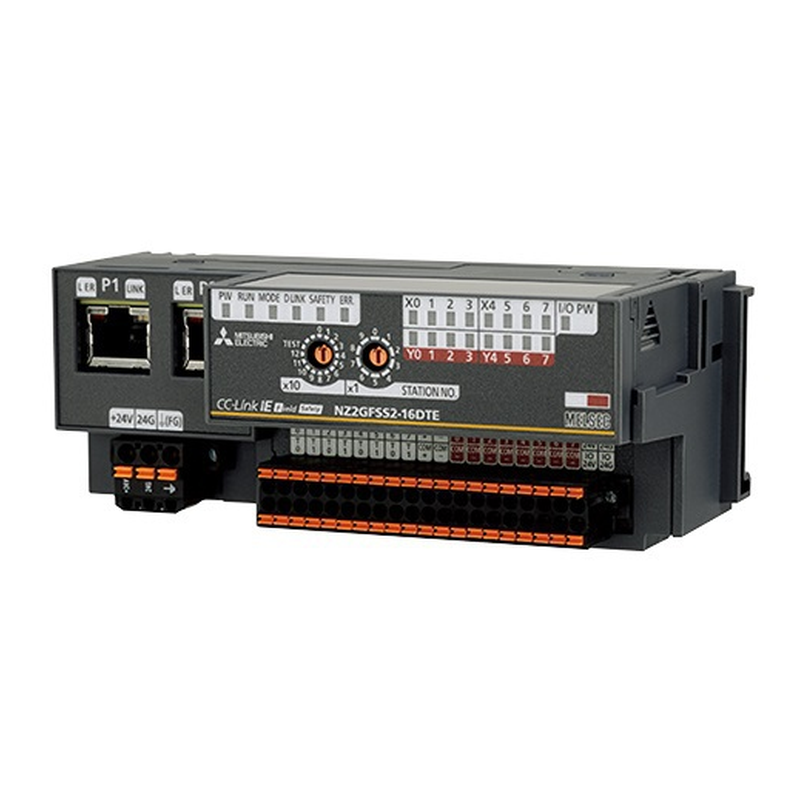

NZ2GFSS2-16DTE
NZ2GFSS2-16DTE
Vendor: Mitsubishi Electric Series: CC Link
PLC CC-Link IE Field Safety remote I/O module; 8-I negative common, 8-O source
Regular price
$2,604.00 AUD
Regular price
Sale price
$2,604.00 AUD
Out of stock
Quantity
Share
Technical Information
| Series | CC-LINK IE FIELD NETWORK |
|---|---|
| Type | SAFETY REMOTE I/O COMBINED M. |
| Power Supply (V) | 24 |
| Current Type | DC |
| Occupied Stations | 1 |
| Integrated Digital Inputs | 8 |
| Integrated Digital Outputs | 8 |
| Rated Input Voltage (VDC) | 24 |
| Rated Load Voltage (VDC) | 24 |
| Output Type | TRANSISTOR |
| Output Logic | SOURCE |
| Wiring | SPRING CLAMP |
| Int. Current Consumption (A) | 0,16 |
Product Dimensions & Weight
| Width (mm) | 142 |
|---|---|
| Height (mm) | 50 |
| Depth (mm) | 68 |
| Weight (kg) | 0,25 |
