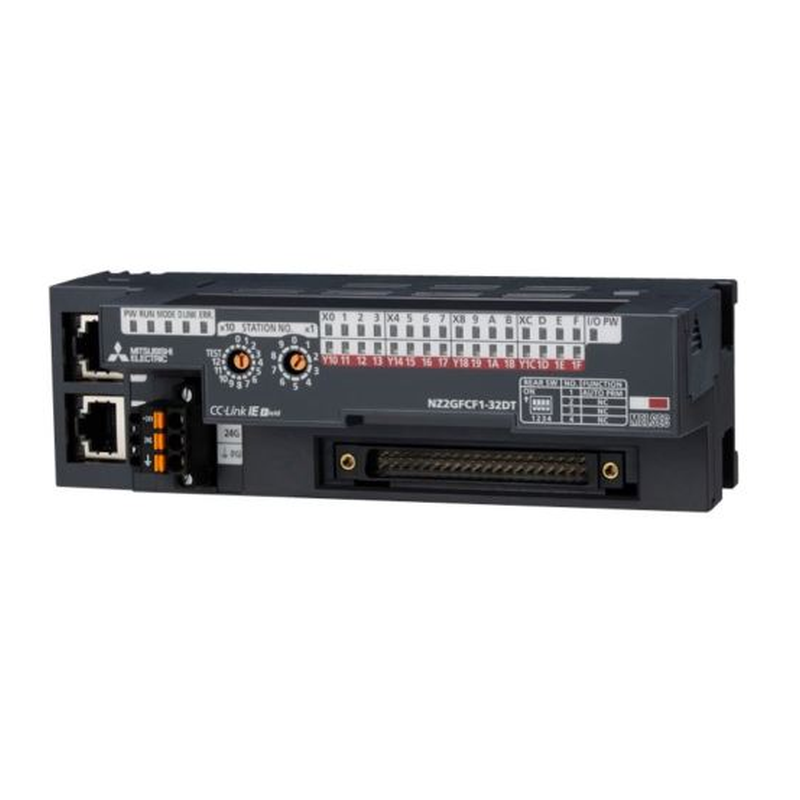

NZ2GFCF1-32DT
NZ2GFCF1-32DT
Vendor: Mitsubishi Electric Series: CC Link
PLC CC-Link IE Field DC Input +COM Transistor sink, 32 points, FCN
Regular price
$892.00 AUD
Regular price
Sale price
$892.00 AUD
Out of stock
Quantity
Share
Technical Information
| Series | CC-LINK IE FIELD NETWORK |
|---|---|
| Type | REMOTE I/O COMBINED MODULE |
| Power Supply (V) | 24 |
| Current Type | DC |
| Occupied Stations | 1 |
| Integrated Digital Inputs | 16 |
| Integrated Digital Outputs | 16 |
| Rated Input Voltage (VDC) | 24 |
| Rated Load Voltage (VDC) | 12/24 |
| Output Type | TRANSISTOR |
| Output Logic | SINK |
| Wiring | CONNECTOR |
| Int. Current Consumption (A) | 0,11 |
Product Dimensions & Weight
| Width (mm) | 163 |
|---|---|
| Height (mm) | 50 |
| Depth (mm) | 68 |
| Weight (kg) | 0,26 |
