NZ2GF2B1N1-16TE
NZ2GF2B1N1-16TE
Vendor: Mitsubishi Electric Series: CC Link

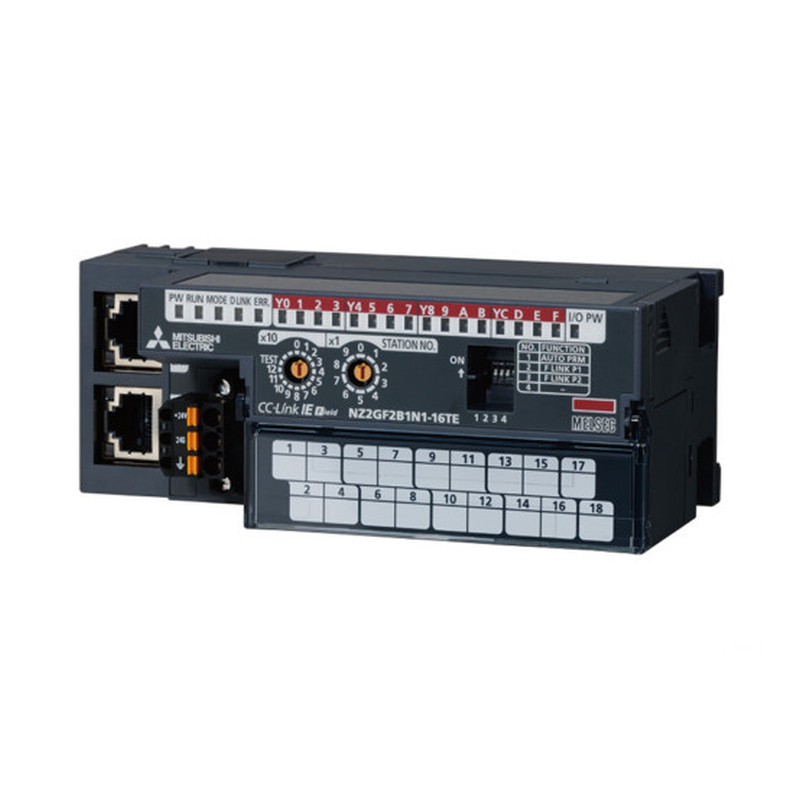

PLC CC-Link IE Field I/O module;16 outputs, Transistor output (source type)
Regular price
$501.00 AUD
Regular price
Sale price
$501.00 AUD
Low stock: 5 left
Quantity
Couldn't load pickup availability
Share
Technical Information
| Series | CC-LINK IE FIELD NETWORK |
|---|---|
| Type | REMOTE TRANSISTOR OUTPUT |
| Power Supply (V) | 24 |
| Current Type | DC |
| Occupied Stations | 1 |
| Integrated Digital Outputs | 16 |
| Output Type | TRANSISTOR |
| Output Logic | SOURCE |
| Rated Load Voltage (VDC) | 12/24 |
| Wiring | SCREW |
| Int. Current Consumption (A) | 0,13 |
Product Dimensions & Weight
| Width (mm) | 133 |
|---|---|
| Height (mm) | 50 |
| Depth (mm) | 68 |
| Weight (kg) | 0,3 |
