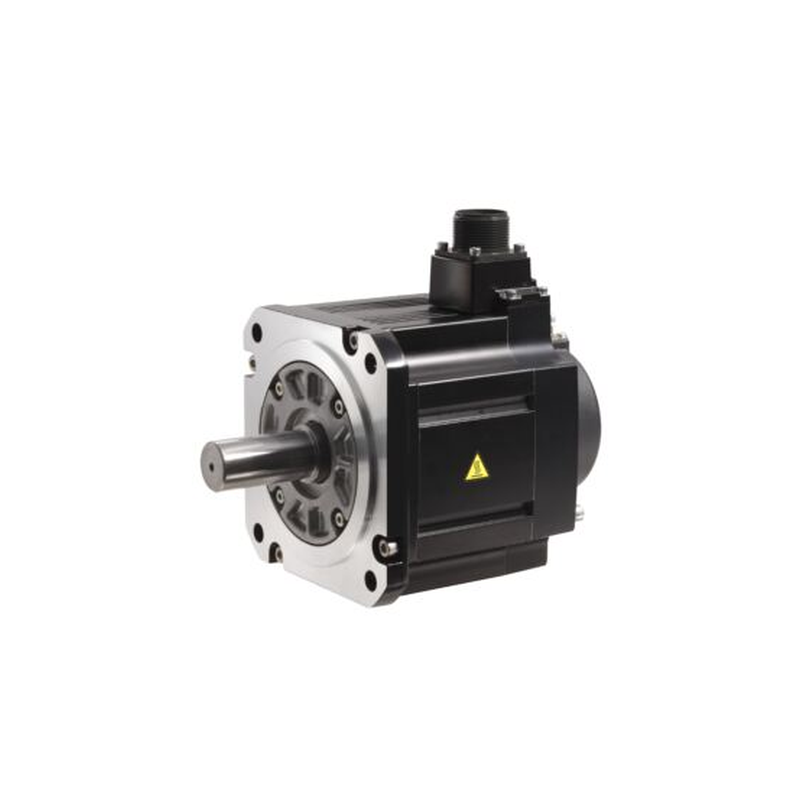

HG-SR702
HG-SR702
Vendor: Mitsubishi Electric Series: MR-J4 Servo
Servomotor HG Series, Power 7 kW; Torque 33.4 Nm, Max. Torque 100 Nm
Regular price
$4,489.00 AUD
Regular price
Sale price
$4,489.00 AUD
Out of stock
Quantity
Share
Technical Information
| Series | MELSERVO-J4 |
|---|---|
| Type | HG-SR |
| Power Supply (V) | 200 |
| Rated Capacity (kW) | 7 |
| Inertia | MEDIUM INERTIA |
| Rated Torque (Nm) | 33,4 |
| Maximum Torque (Nm) | 100 |
| Rated Speed (rpm) | 2000 |
| Maximum Speed (rpm) | 3000 |
| Inertia (kg*cm2) | 151 |
| Brake | NO |
| Shaft Type | STRAIGHT SHAFT |
| Protection Class | IP67 |
| Current Type | AC |
| Encoder Type | 22-BIT |
| Encoder Resolution (p/rev) | 4194304 |
Product Dimensions & Weight
| Width (mm) | 176 |
|---|---|
| Height (mm) | 237,1 |
| Depth (mm) | 297,5 |
| Weight (kg) | 27 |
