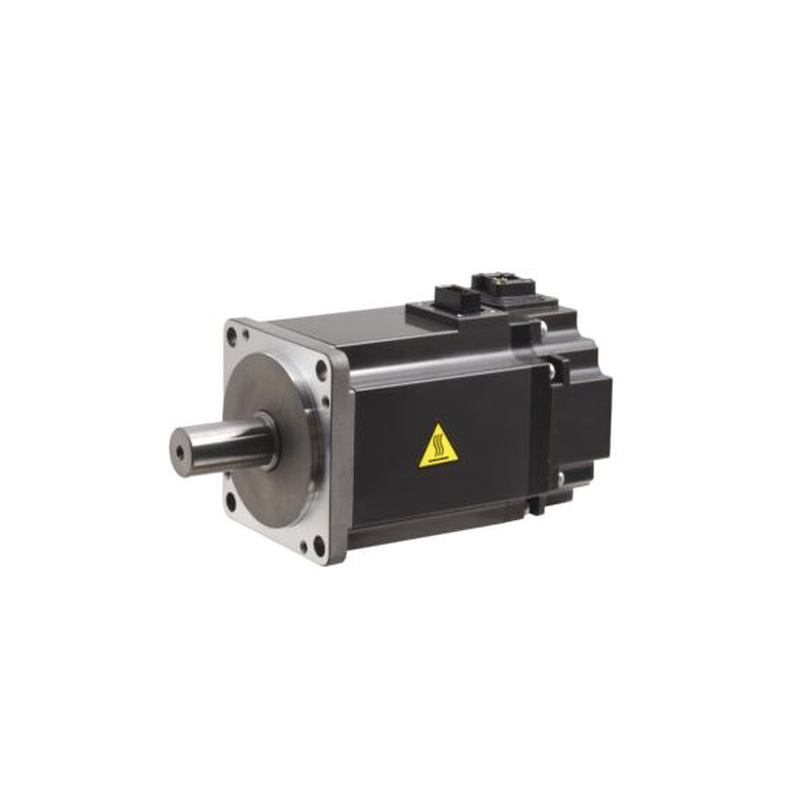

HG-KR73B
HG-KR73B
Vendor: Mitsubishi Electric Series: MR-J4 Servo
Servomotor HG Series, Power 750 W; Torque 2.4 Nm, Max. Torque 8.4 Nm, Brake
Regular price
$1,771.00 AUD
Regular price
Sale price
$1,771.00 AUD
Low stock: 4 left
Quantity
Couldn't load pickup availability
Share
Technical Information
| Series | MELSERVO-J4 |
|---|---|
| Type | HG-KR |
| Power Supply (V) | 200 |
| Rated Capacity (kW) | 0,75 |
| Inertia | LOW INERTIA |
| Rated Torque (Nm) | 2,4 |
| Maximum Torque (Nm) | 8,4 |
| Rated Speed (rpm) | 3000 |
| Maximum Speed (rpm) | 6000 |
| Inertia (kg*cm2) | 1,37 |
| Brake | YES |
| Shaft Type | STRAIGHT SHAFT |
| Protection Class | IP65 |
| Current Type | AC |
| Encoder Type | 22-BIT |
| Encoder Resolution (p/rev) | 4194304 |
Product Dimensions & Weight
| Width (mm) | 80 |
|---|---|
| Height (mm) | 80 |
| Depth (mm) | 152,3 |
| Weight (kg) | 3,8 |
