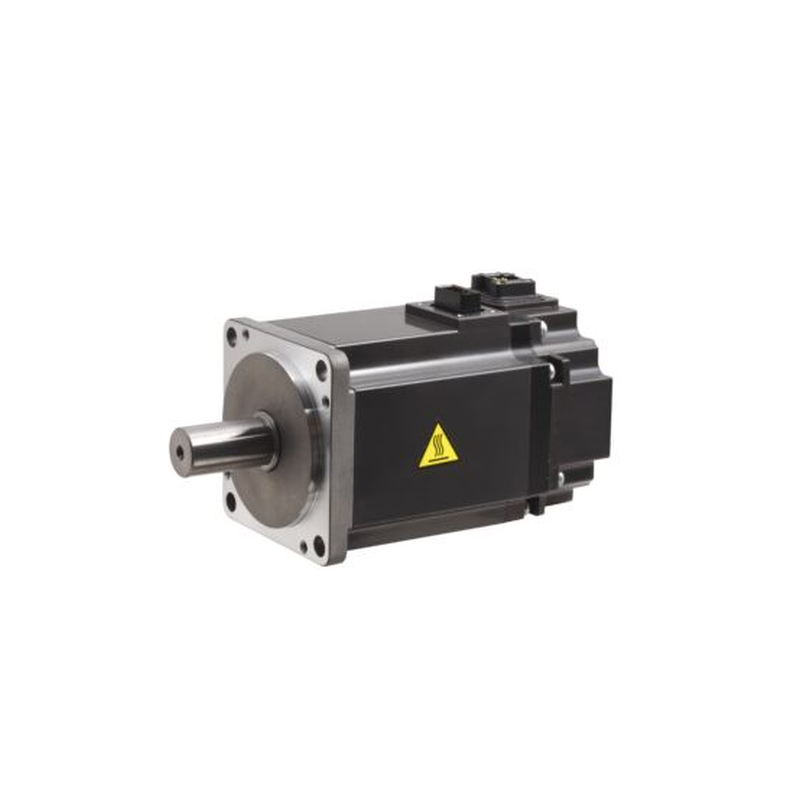

HG-KR43
HG-KR43
Vendor: Mitsubishi Electric Series: MR-J4 Servo
Servomotor HG Series, Power 400 W; Torque 1.3 Nm, Max. Torque 4.5 Nm
Regular price
$1,107.00 AUD
Regular price
Sale price
$1,107.00 AUD
Low stock: 3 left
Quantity
Couldn't load pickup availability
Share
Technical Information
| Series | MELSERVO-J4 |
|---|---|
| Type | HG-KR |
| Power Supply (V) | 200 |
| Rated Capacity (kW) | 0,4 |
| Inertia | LOW INERTIA |
| Rated Torque (Nm) | 1,3 |
| Maximum Torque (Nm) | 4,5 |
| Rated Speed (rpm) | 3000 |
| Maximum Speed (rpm) | 6000 |
| Inertia (kg*cm2) | 0,371 |
| Brake | NO |
| Shaft Type | STRAIGHT SHAFT |
| Protection Class | IP65 |
| Current Type | AC |
| Encoder Type | 22-BIT |
| Encoder Resolution (p/rev) | 4194304 |
Product Dimensions & Weight
| Width (mm) | 60 |
|---|---|
| Height (mm) | 77,1 |
| Depth (mm) | 98,3 |
| Weight (kg) | 1,4 |
