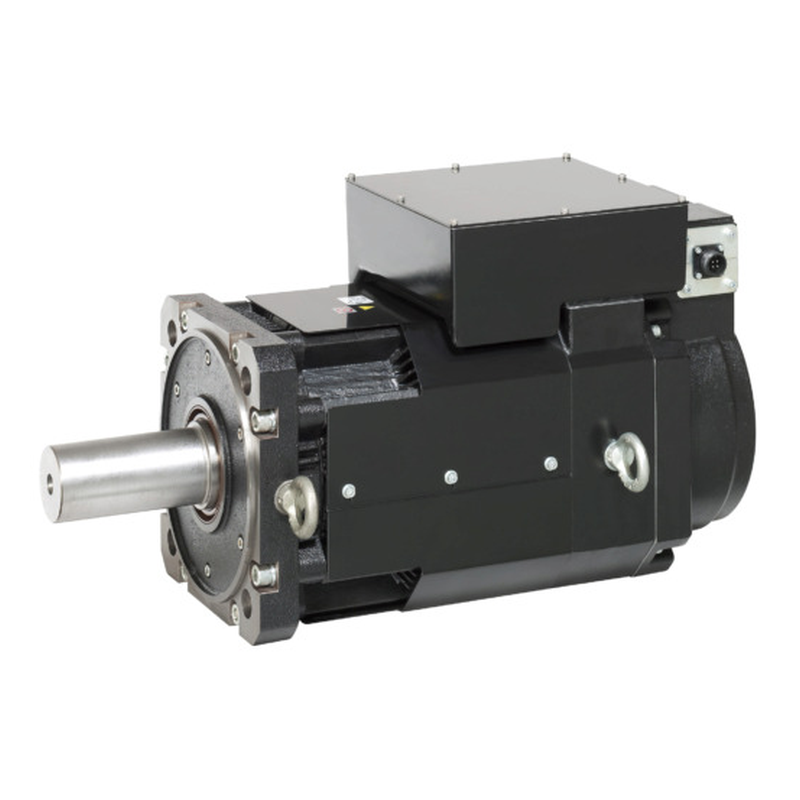

HG-JR22K1M4
HG-JR22K1M4
Vendor: Mitsubishi Electric Series: MR-J4 Servo
Servomotor HG Series, Power 22 kW; Torque 140 Nm, Max. Torque 420 Nm , 400V
Regular price
$21,088.00 AUD
Regular price
Sale price
$21,088.00 AUD
Out of stock
Quantity
Share
Technical Information
| Series | MELSERVO-J4 |
|---|---|
| Type | HG-JR |
| Power Supply (V) | 400 |
| Rated Capacity (kW) | 22 |
| Inertia | LOW INERTIA |
| Rated Torque (Nm) | 140 |
| Maximum Torque (Nm) | 420 |
| Rated Speed (rpm) | 1500 |
| Maximum Speed (rpm) | 2500 |
| Inertia (kg*cm2) | 489 |
| Brake | NO |
| Shaft Type | STRAIGHT SHAFT |
| Protection Class | IP44 |
| Current Type | AC |
| Encoder Type | 22-BIT |
| Encoder Resolution (p/rev) | 4194304 |
Product Dimensions & Weight
| Width (mm) | 250 |
|---|---|
| Height (mm) | 345 |
| Depth (mm) | 616 |
| Weight (kg) | 120 |
