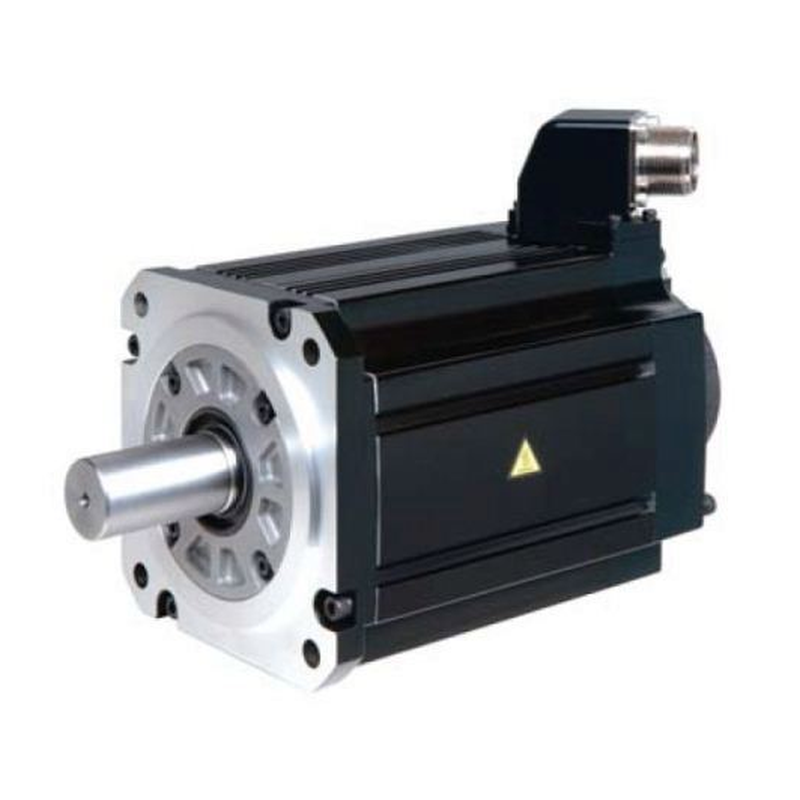

HG-JR1534B
HG-JR1534B
Vendor: Mitsubishi Electric Series: MR-J4 Servo
Servomotor HG Series, Power 1,5 kW; Torque 4.77 Nm, Max. 14.3 Nm , Brake, 400V
Regular price
$3,503.00 AUD
Regular price
Sale price
$3,503.00 AUD
Out of stock
Quantity
Share
Technical Information
| Series | MELSERVO-J4 |
|---|---|
| Type | HG-JR |
| Power Supply (V) | 400 |
| Rated Capacity (kW) | 1,5 |
| Inertia | LOW INERTIA |
| Rated Torque (Nm) | 4,8 |
| Maximum Torque (Nm) | 14,3 |
| Rated Speed (rpm) | 3000 |
| Maximum Speed (rpm) | 6000 |
| Inertia (kg*cm2) | 4,29 |
| Brake | YES |
| Shaft Type | STRAIGHT SHAFT |
| Protection Class | IP67 |
| Current Type | AC |
| Encoder Type | 22-BIT |
| Encoder Resolution (p/rev) | 4194304 |
Product Dimensions & Weight
| Width (mm) | 90 |
|---|---|
| Height (mm) | 138,8 |
| Depth (mm) | 285 |
| Weight (kg) | 7,3 |
