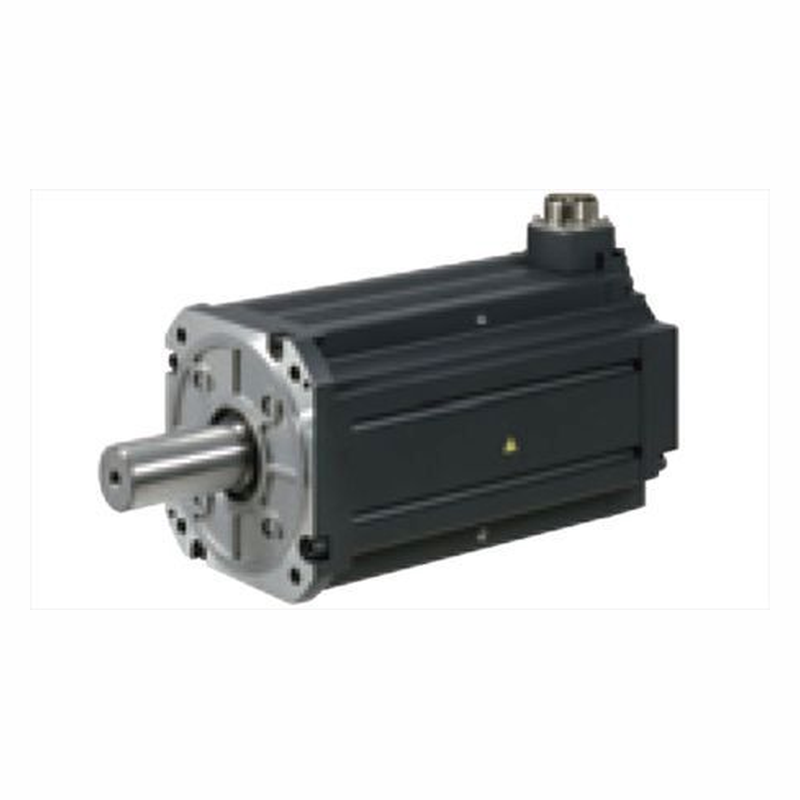

HG-JR11K1M4
HG-JR11K1M4
Vendor: Mitsubishi Electric Series: MR-J4 Servo
Servomotor HG Series, Power 11 kW; Torque 70 Nm, Max. Torque 210 Nm , 400V
Regular price
$10,285.00 AUD
Regular price
Sale price
$10,285.00 AUD
Out of stock
Quantity
Share
Technical Information
| Series | MELSERVO-J4 |
|---|---|
| Type | HG-JR |
| Power Supply (V) | 400 |
| Rated Capacity (kW) | 11 |
| Inertia | LOW INERTIA |
| Rated Torque (Nm) | 70 |
| Maximum Torque (Nm) | 210 |
| Rated Speed (rpm) | 1500 |
| Maximum Speed (rpm) | 3000 |
| Inertia (kg*cm2) | 220 |
| Brake | NO |
| Shaft Type | STRAIGHT SHAFT |
| Protection Class | IP67 |
| Current Type | AC |
| Encoder Type | 22-BIT |
| Encoder Resolution (p/rev) | 4194304 |
Product Dimensions & Weight
| Width (mm) | 220 |
|---|---|
| Height (mm) | 281,1 |
| Depth (mm) | 455,5 |
| Weight (kg) | 62 |
