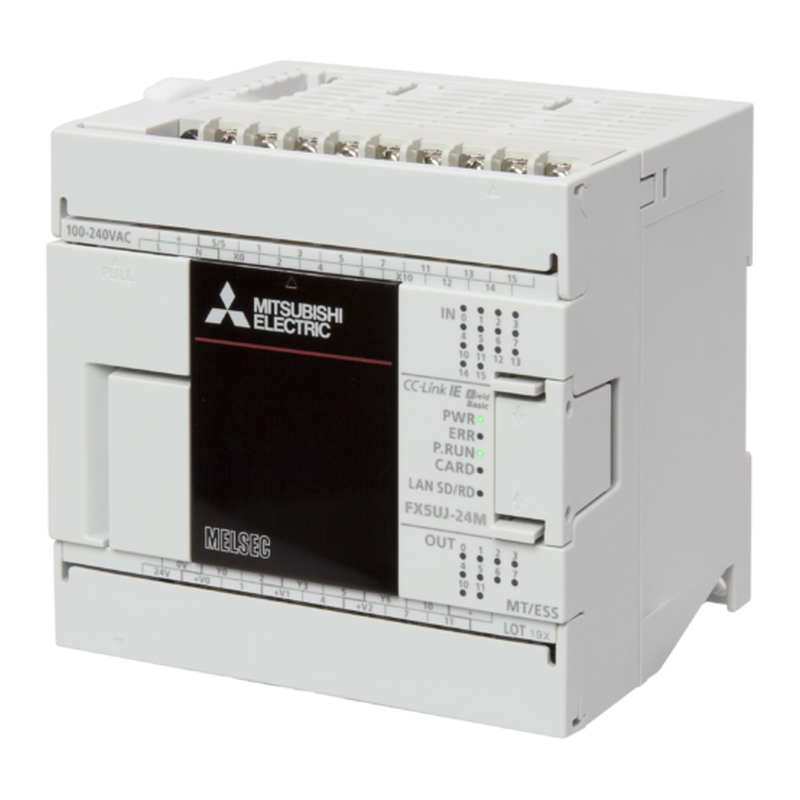

FX5UJ-24MT/ESS
FX5UJ-24MT/ESS
Vendor: Mitsubishi Electric Series: FX Family
PLC CPU Module; iQ-F; AC; 14 Inputs; 10 Transistor Outputs source; Eth.; SD; USB
Regular price
$1,170.00 AUD
Regular price
Sale price
$1,170.00 AUD
Out of stock
Quantity
Share
Technical Information
| Series | MELSEC IQ-F SERIES |
|---|---|
| Type | FX5UJ |
| Power Supply (V) | 100-240 |
| Current Type | AC |
| Program Memory | 48K STEPS |
| Program Memory Unit | FLASH |
| Integrated Digital Inputs | 14 |
| Integrated Digital Outputs | 10 |
| Output Type | TRANSISTOR |
| Output Logic | SOURCE |
| Local I/O Points | 256 |
| Local + Remote I/O Points | 512 |
| Expandable | YES |
| Cycle Time LD (ns) | 34 |
| Cycle Time MOV (ns) | 34 |
| USB | 1 |
| Ethernet Port | 1 |
| Power Consumption (W) | 30 |
| Buffer Battery | NO |
| Protection Class | IP10 |
| Min. Ambient Temperature (°C) | -20 |
| Max. Ambient Temperature (°C) | 55 |
Product Dimensions & Weight
| Width (mm) | 95 |
|---|---|
| Height (mm) | 90 |
| Depth (mm) | 83 |
| Weight (kg) | 0,55 |
