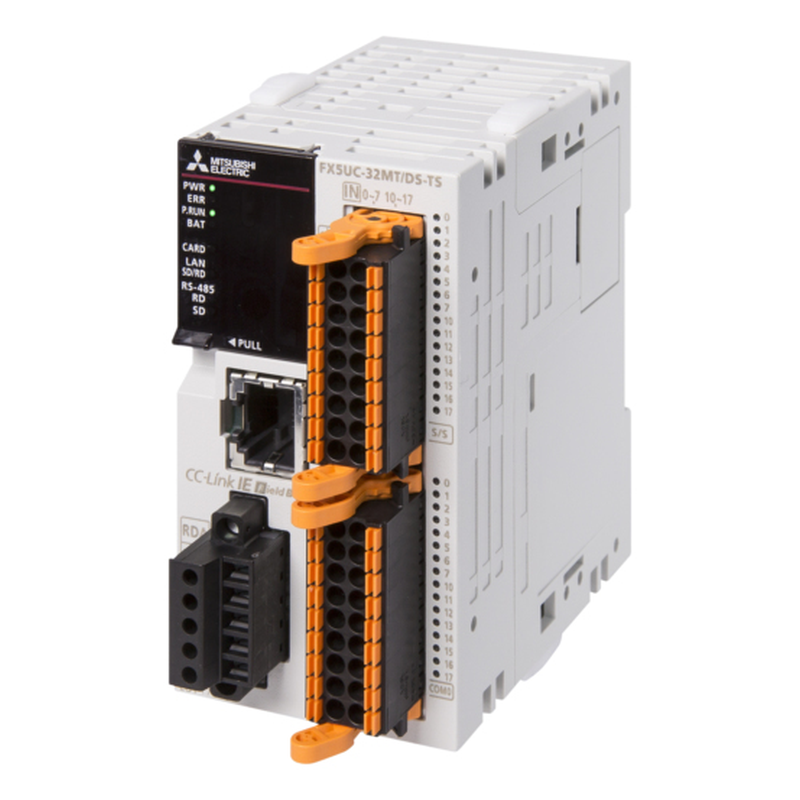

FX5UC-32MT/DSS-TS
FX5UC-32MT/DSS-TS
Vendor: Mitsubishi Electric Series: FX Family
FX5UC;CPU;DC;16 Inputs;16 Transistor Outputs;Eth;RS-485;spring clamp;source
Regular price
$1,367.00 AUD
Regular price
Sale price
$1,367.00 AUD
Out of stock
Quantity
Share
Technical Information
| Series | MELSEC IQ-F SERIES |
|---|---|
| Type | FX5UC |
| Power Supply (V) | 24 |
| Current Type | DC |
| Program Memory | 64K STEPS |
| Program Memory Unit | FLASH |
| Integrated Digital Inputs | 16 |
| Integrated Digital Outputs | 16 |
| Output Type | TRANSISTOR |
| Output Logic | SOURCE |
| Local I/O Points | 256 |
| Local + Remote I/O Points | 512 |
| Expandable | YES |
| Cycle Time LD (ns) | 34 |
| Cycle Time MOV (ns) | 34 |
| Ethernet Port | 1 |
| RS-485 | 1 |
| Power Consumption (W) | 5 |
| Buffer Battery | OPTION |
| Protection Class | IP10 |
| Min. Ambient Temperature (°C) | -20 |
| Max. Ambient Temperature (°C) | 55 |
Product Dimensions & Weight
| Width (mm) | 48,1 |
|---|---|
| Height (mm) | 90 |
| Depth (mm) | 93,7 |
| Weight (kg) | 0,25 |
