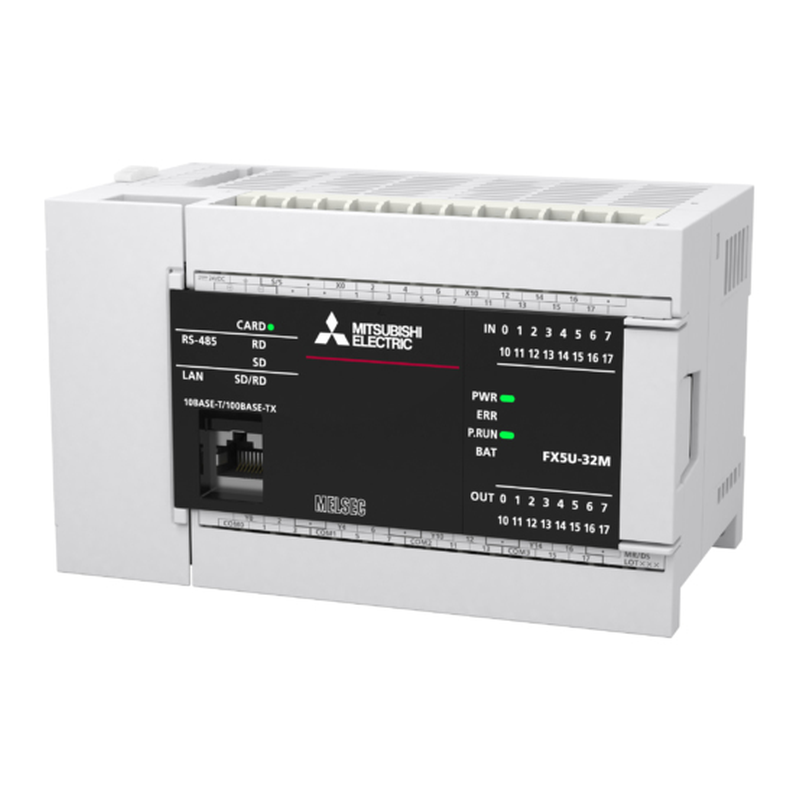

FX5U-32MR/DS
FX5U-32MR/DS
Vendor: Mitsubishi Electric Series: FX Family
FX5U;CPU;DC;16 Inputs;16 Relay Outputs;3xAnalog;Eth;RS-485
Regular price
$1,572.00 AUD
Regular price
Sale price
$1,572.00 AUD
Low stock: 8 left
Quantity
Couldn't load pickup availability
Share
Technical Information
| Series | MELSEC IQ-F SERIES |
|---|---|
| Type | FX5U |
| Power Supply (V) | 24 |
| Current Type | DC |
| Program Memory | 64K STEPS |
| Program Memory Unit | FLASH |
| Integrated Digital Inputs | 16 |
| Integrated Digital Outputs | 16 |
| Integrated Analogue Inputs | 2 |
| Output Type | RELAY |
| Local I/O Points | 256 |
| Local + Remote I/O Points | 512 |
| Expandable | YES |
| Cycle Time LD (ns) | 34 |
| Cycle Time MOV (ns) | 34 |
| Ethernet Port | 1 |
| RS-485 | 1 |
| Power Consumption (W) | 30 |
| Buffer Battery | OPTION |
| Protection Class | IP10 |
| Min. Ambient Temperature (°C) | -20 |
| Max. Ambient Temperature (°C) | 55 |
Product Dimensions & Weight
| Width (mm) | 150 |
|---|---|
| Height (mm) | 90 |
| Depth (mm) | 83 |
| Weight (kg) | 0,65 |
