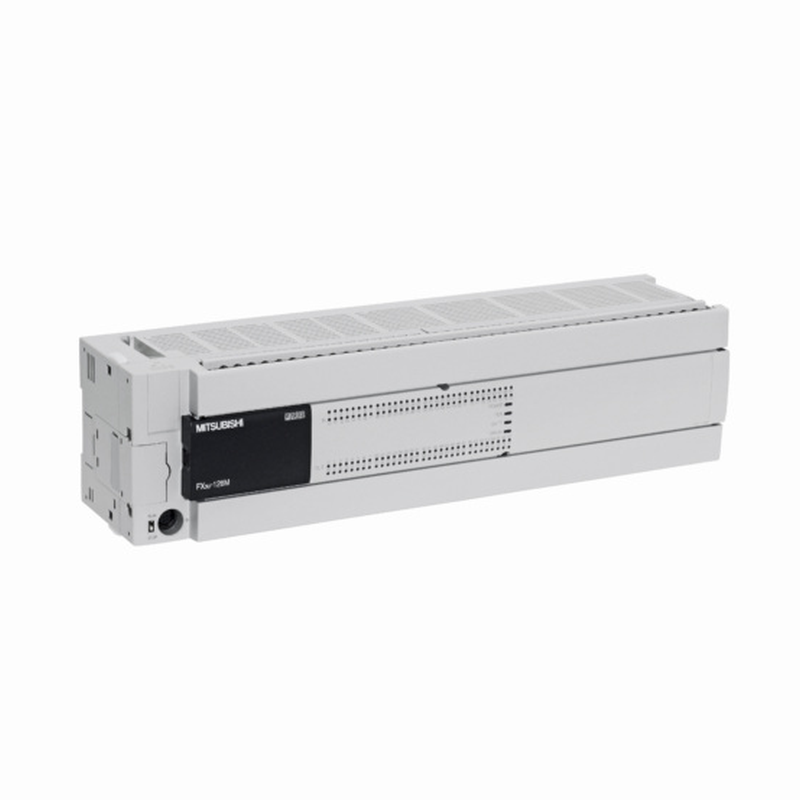

FX3U-128MT/ES
FX3U-128MT/ES
Vendor: Mitsubishi Electric Series: FX Family
PLC, FX3U Base Unit AC 100-240 V: 64 inputs DC 24 V; 64 transistor outputs;sink
Regular price
$2,922.00 AUD
Regular price
Sale price
$2,922.00 AUD
Out of stock
Quantity
Share
Technical Information
| Series | MELSEC-F SERIES |
|---|---|
| Type | FX3U |
| Power Supply (V) | 100-240 |
| Current Type | AC |
| Program Memory | 64K STEPS |
| Program Memory Unit | RAM |
| Integrated Digital Inputs | 64 |
| Integrated Digital Outputs | 64 |
| Output Type | TRANSISTOR |
| Output Logic | SINK |
| Local I/O Points | 256 |
| Local + Remote I/O Points | 384 |
| Expandable | YES |
| Cycle Time LD (ns) | 65 |
| Cycle Time MOV (ns) | 642 |
| RS-422 | 1 |
| Power Consumption (W) | 65 |
| Buffer Battery | YES |
| Protection Class | IP10 |
| Min. Ambient Temperature (°C) | 0 |
| Max. Ambient Temperature (°C) | 55 |
Product Dimensions & Weight
| Width (mm) | 350 |
|---|---|
| Height (mm) | 90 |
| Depth (mm) | 86 |
| Weight (kg) | 1,467 |
