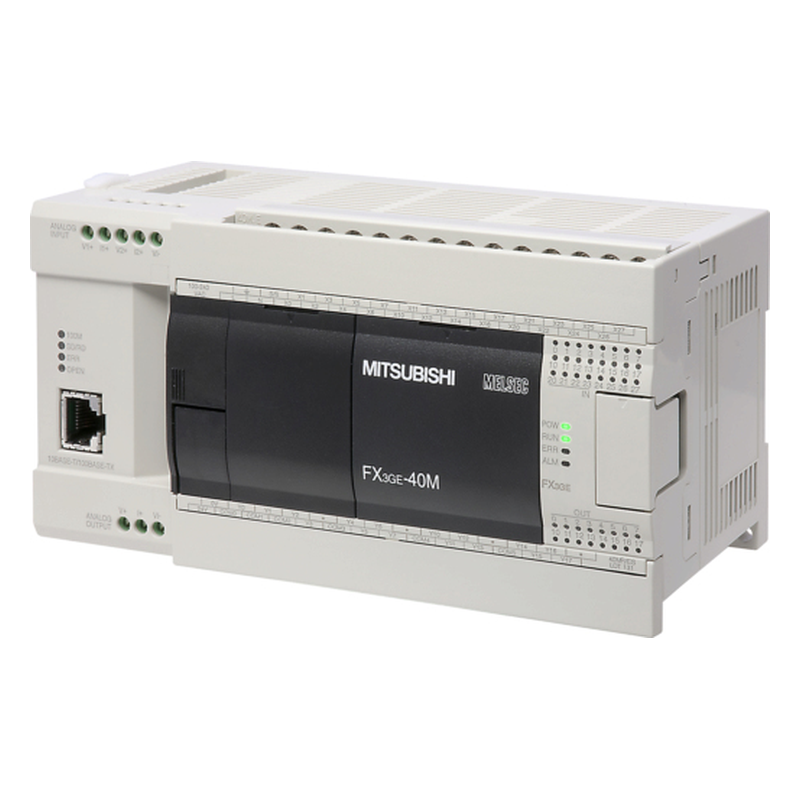

FX3GE-40MT/ESS
FX3GE-40MT/ESS
Vendor: Mitsubishi Electric Series: FX Family
SPS FX3GE AC100-240V;24 Inputs DC24V;16xTrans;3xAnalog;Ethernet;USB;RS422;source
Regular price
$1,032.00 AUD
Regular price
Sale price
$1,032.00 AUD
Low stock: 4 left
Quantity
Couldn't load pickup availability
Share
Technical Information
| Series | MELSEC-F SERIES |
|---|---|
| Type | FX3GE |
| Power Supply (V) | 100-240 |
| Current Type | AC |
| Program Memory | 32K STEPS |
| Program Memory Unit | EEPROM |
| Integrated Digital Inputs | 24 |
| Integrated Digital Outputs | 16 |
| Integrated Analogue Inputs | 2 |
| Output Type | TRANSISTOR |
| Output Logic | SOURCE |
| Local I/O Points | 128 |
| Local + Remote I/O Points | 256 |
| Expandable | YES |
| Cycle Time LD (ns) | 210 |
| Cycle Time MOV (ns) | 500 |
| USB | 1 |
| Ethernet Port | 1 |
| RS-422 | 1 |
| Power Consumption (W) | 37 |
| Buffer Battery | OPTION |
| Protection Class | IP10 |
| Min. Ambient Temperature (°C) | 0 |
| Max. Ambient Temperature (°C) | 55 |
Product Dimensions & Weight
| Width (mm) | 175 |
|---|---|
| Height (mm) | 90 |
| Depth (mm) | 86 |
| Weight (kg) | 0,8 |
