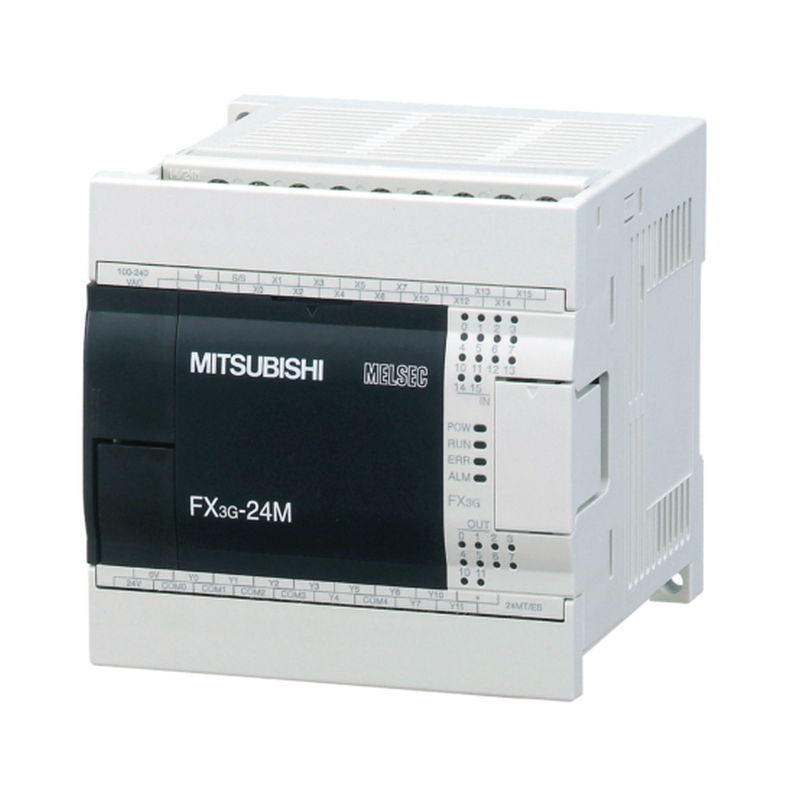

FX3G-24MT/DS
FX3G-24MT/DS
Vendor: Mitsubishi Electric Series: FX Family
PLC, FX3G Base Unit DC 24 V; 14 inputs DC 24V; 10 transistor outputs (Sink)
Regular price
$871.00 AUD
Regular price
Sale price
$871.00 AUD
Out of stock
Quantity
Share
Technical Information
| Series | MELSEC-F SERIES |
|---|---|
| Type | FX3G |
| Power Supply (V) | 24 |
| Current Type | DC |
| Program Memory | 32K STEPS |
| Program Memory Unit | EEPROM |
| Integrated Digital Inputs | 14 |
| Integrated Digital Outputs | 10 |
| Output Type | TRANSISTOR |
| Output Logic | SINK |
| Local I/O Points | 128 |
| Local + Remote I/O Points | 256 |
| Expandable | YES |
| Cycle Time LD (ns) | 210 |
| Cycle Time MOV (ns) | 500 |
| USB | 1 |
| RS-422 | 1 |
| Power Consumption (W) | 21 |
| Buffer Battery | OPTION |
| Protection Class | IP10 |
| Min. Ambient Temperature (°C) | 0 |
| Max. Ambient Temperature (°C) | 55 |
Product Dimensions & Weight
| Width (mm) | 90 |
|---|---|
| Height (mm) | 90 |
| Depth (mm) | 86 |
| Weight (kg) | 0,459 |
