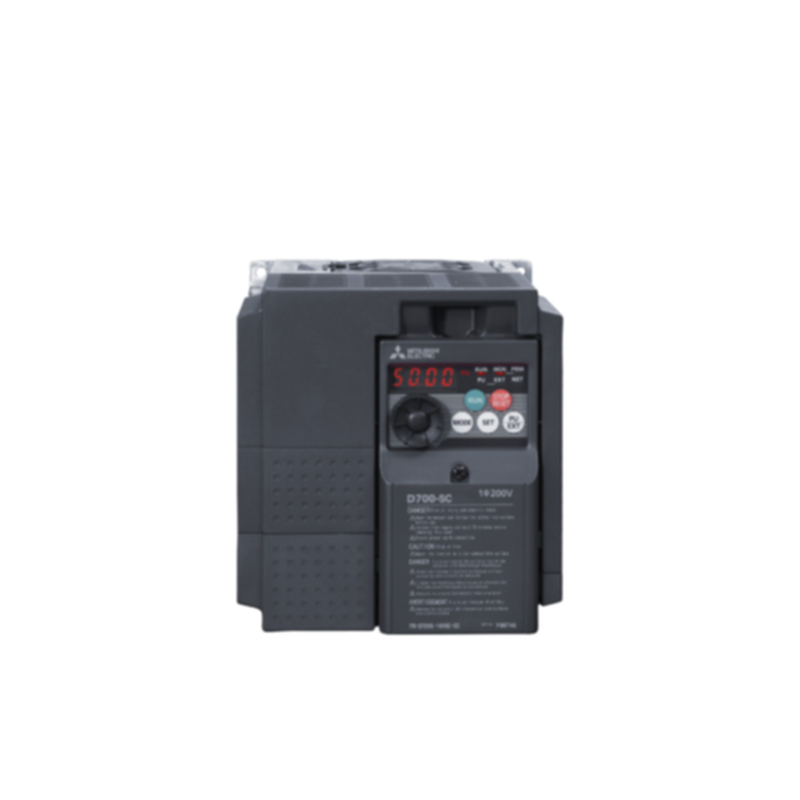

FR-D720S-100SC-EC
FR-D720S-100SC-EC
Vendor: Mitsubishi Electric Series:
Inverter; Rated Power: 2,2kW; 1x200-240V; Rated Current:10A@50°C; IP20
Regular price
$733.17 AUD
Regular price
Sale price
$733.17 AUD
Out of stock
Quantity
Share
Technical Information
| Series | FR-D700 SERIES |
|---|---|
| Type | FR-D700 COMPACT INVERTER |
| Minimum Rated Voltage (V) | 200 |
| Min. Permissible Voltage (V) | 170 |
| Maximum Rated Voltage (V) | 240 |
| Max. Permissible Voltage (V) | 264 |
| Current Type | AC |
| Phases | 1 |
| Rated Output Current ND (A) | 10 |
| Rated Motor Capacity ND (kW) | 2,2 |
| Frequency Range (Hz) | 0,2€€œ400 |
| Control Method | MAGNETIC FLUX VECTOR CONTROL |
| Control Method (2) | SOFT-PWM/HIGH FREQUENCY PWM |
| Control Method (3) | V/F CONTROL |
| Motor Type | INDUCTION MOTOR |
| Brake Chopper ED (%) | 30 |
| Integrated EMC Filter | NO |
| Safe Torque Off (STO) | YES |
| Regenerative (4Q) | NO |
| Integrated DC Choke | NO |
| Display | BUILT-IN |
| Display Type | 4 DIGITS LED |
| PLC Function | NO |
| Integrated Digital Inputs | 5 |
| Digital Outputs (Transistor) | 1 |
| Digital Outputs (Relay) | 1 |
| Integrated Analogue Inputs | 2 |
| Integrated Analogue Outputs | 1 |
| IO Type of Terminal Block | SPRING CLAMP |
| Expandable | NO |
| RS-485 | 1 |
| USB | NO |
| Ethernet Port | NO |
| Built-In Network | MODBUS-RTU |
| Leakage Current (mA) | 1 |
| Power Loss ND (W) | 110 |
| Standby Power Consumption (W) | 5,5-14 |
| Protection Class | IP20 |
Product Dimensions & Weight
| Width (mm) | 140 |
|---|---|
| Height (mm) | 150 |
| Depth (mm) | 145 |
| Weight (kg) | 2 |
