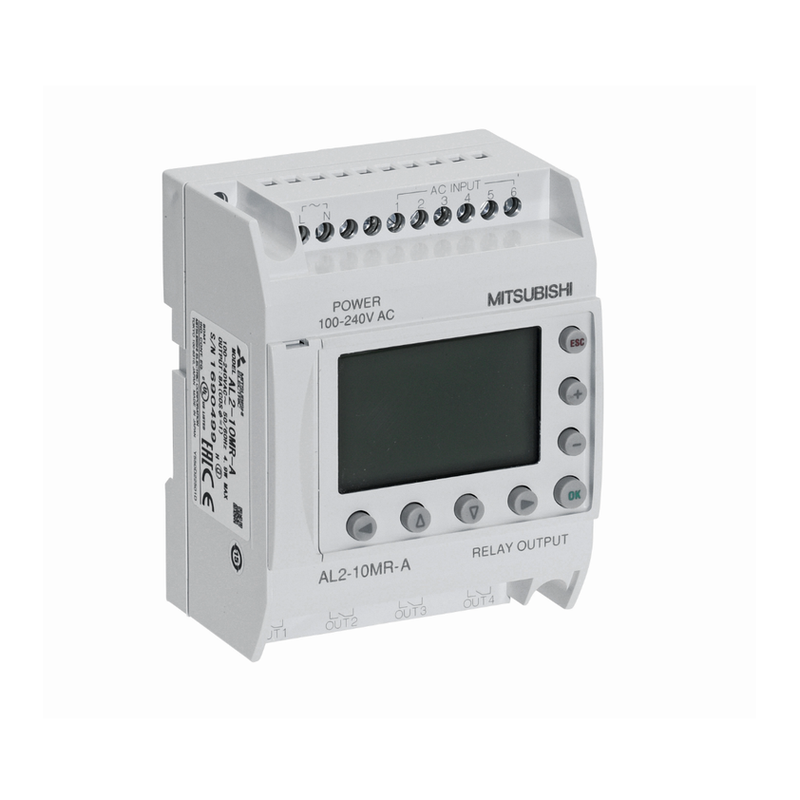

AL2-10MR-A
AL2-10MR-A
Vendor: Mitsubishi Electric Series: Alpha
Programmable Logic Controller, ALPHA Base Unit 6 inputs/4 relay outputs, AC
Regular price
$333.06 AUD
Regular price
Sale price
$333.06 AUD
118 in stock
Quantity
Couldn't load pickup availability
Share
Technical Information
| Series | ALPHA2 SERIES |
|---|---|
| Type | ALPHA MAIN UNIT |
| Power Supply (V) | 100-240 |
| Current Type | AC |
| Program Memory | 200 BLOCKS |
| Program Memory Unit | EEPROM |
| Integrated Digital Inputs | 6 |
| Integrated Digital Outputs | 4 |
| Output Type | RELAY |
| Local I/O Points | 10 |
| Local + Remote I/O Points | 10 |
| Expandable | YES |
| RS-232 | 1 |
| Power Consumption (W) | 4,9 |
| Buffer Battery | NO |
| Protection Class | IP20 |
| Min. Ambient Temperature (°C) | -25 |
| Max. Ambient Temperature (°C) | 55 |
Product Dimensions & Weight
| Width (mm) | 71,2 |
|---|---|
| Height (mm) | 90 |
| Depth (mm) | 52 |
| Weight (kg) | 0,21 |
