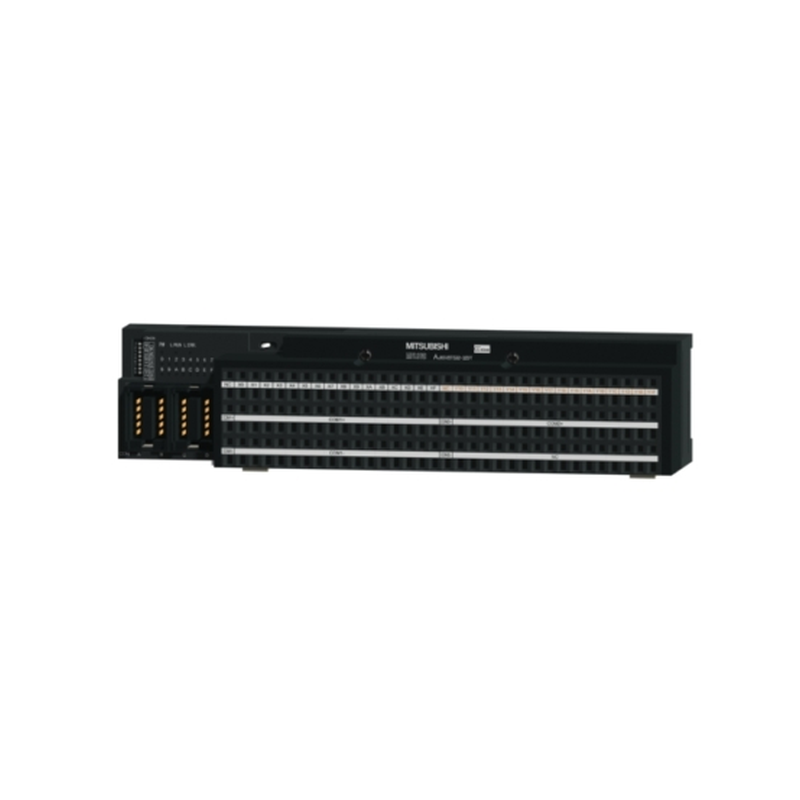

AJ65VBTS32-32DT
AJ65VBTS32-32DT
Vendor: Mitsubishi Electric Series: CC Link
CC-Link small type remote IO unit (DC input, transistor output, spring clamp)
Regular price
$756.00 AUD
Regular price
Sale price
$756.00 AUD
Out of stock
Quantity
Share
Technical Information
| Series | CC-LINK |
|---|---|
| Type | REMOTE I/O COMBINED MODULE |
| Power Supply (V) | 24 |
| Current Type | DC |
| Occupied Stations | 1 |
| Integrated Digital Inputs | 16 |
| Integrated Digital Outputs | 16 |
| Rated Input Voltage (VDC) | 24 |
| Rated Load Voltage (VDC) | 12-24 |
| Output Type | TRANSISTOR |
| Output Logic | SINK |
| Wiring | SPRING CLAMP |
| Int. Current Consumption (A) | 0,05 |
Product Dimensions & Weight
| Width (mm) | 222 |
|---|---|
| Height (mm) | 50 |
| Depth (mm) | 51,5 |
| Weight (kg) | 0,41 |
